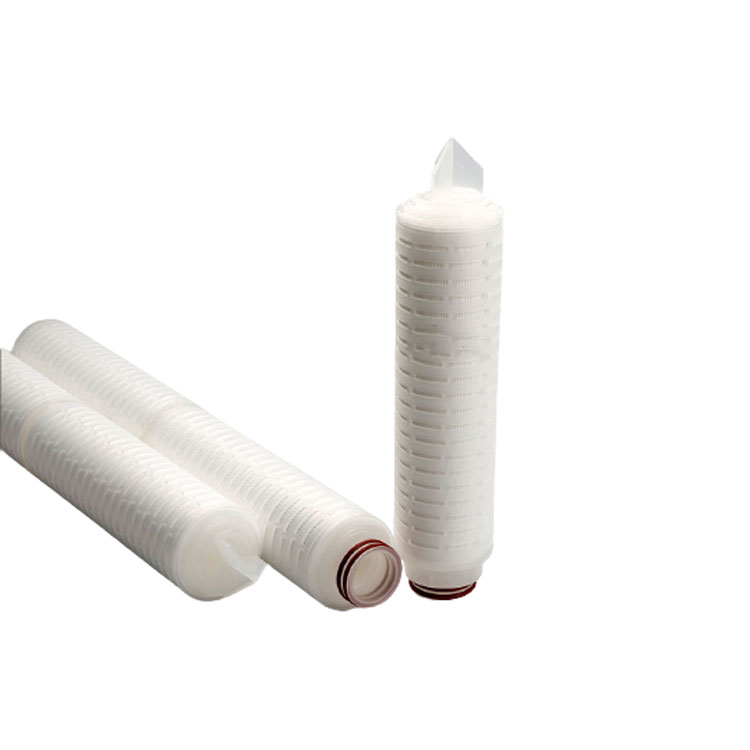

TLGF Series Liquid Filter Glass Giber Filter Cartridge

Material Construction

1. Filter Media	Ultrafine Glass Fiber
   Support/Drainage	Polypropylene
   Cage/Core/End Caps	Polypropylene
   Seal Material	EPDM,Silicone,Viton,FEP

Performance

1. Filtration Rating	0.1μm，0.2μm，0.45μm，1.0μm，3.0μm，5.0μm，10μm
   Maximun Operating Temperature	80℃
   Maximum Operating Differential Pressure	4bar/21℃ 2.4bar/80℃

Ordering Information

1. TLGF               0500                   10                      C1                               E
   Series	Micron	Length	End Cap Type	Seal Material
   TLGF	0010=0.1μm	05=5"	C1=226/Spear	E=EPDM
   	0020=0.2μm	10=10"	C3=222/Spear	S=Silicone
   	0045=0.45μm	20=20"	C5=222/Flat	V=Viton
   	0100=1.0μm	30=30"	C6=226/Flat	P=FEP
   	0300=3.0μm	40=40"	C9=DOE
   	0500=5.0μm
   	1000=10μm
