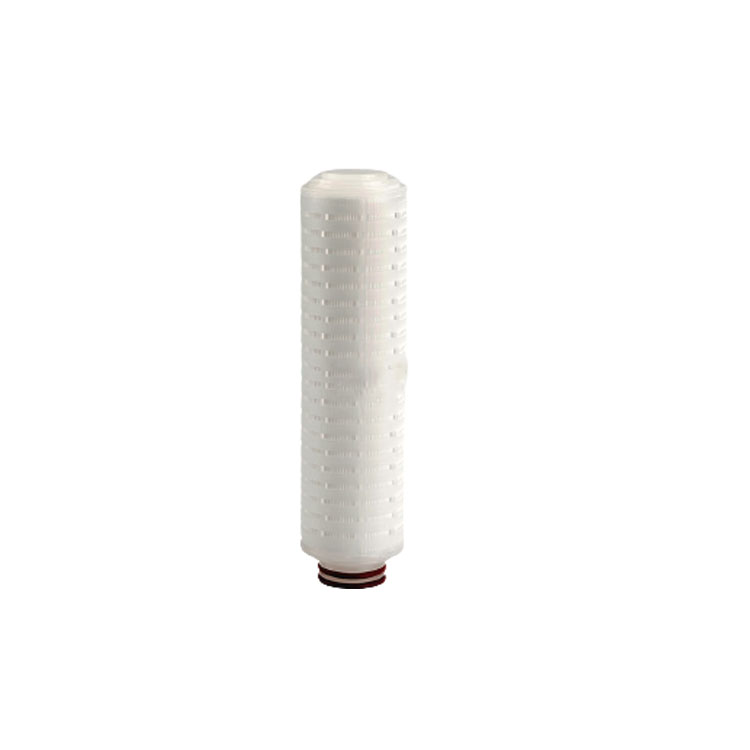

TFPS Series High Flow PES Membrane Filter Cartridge

Material Constructions

1. Filter Media	Asymmetric Polyethersulfone（PES) Membrane
   Support/Drainage	Polypropylene（PP）
   Cage/Core/End Caps	Polypropylene（PP)

Operating Characteristic

1. Maximun Operating Temperature	80℃
   Maximum Operating Differance Pressure	4bar/21℃ 2.4bar/80℃

Filtration Rating and Area

1. Filtration Rating	0.02μm，0.03μm，0.05μm，0.1μm，0.22μm，0.45μm，0.65μm，1.2μm
   Filtration Area	0.66㎡/10"

Ordering Information

1. TFPS               0022                 10                     C1                             E
   Series	Micron	Length	End Cap Type	Seal Material
   TFPS	0002=0.02μm	05=5"	C1=226/Spear	E=EPDM
   	0003=0.03μm	10=10"	C3=222/Spear	S=Silicone
   	0005=0.05μm	20=20"	C5=222/Flat	V=Viton
   	0010=0.1μm	30=30"	C6=226/Flat	P=FEP
   	0022=0.22μm	40=40"	C9=DOE
   	0045=0.45μm
   	0065=0.65μm
   	0120=1.2μm
